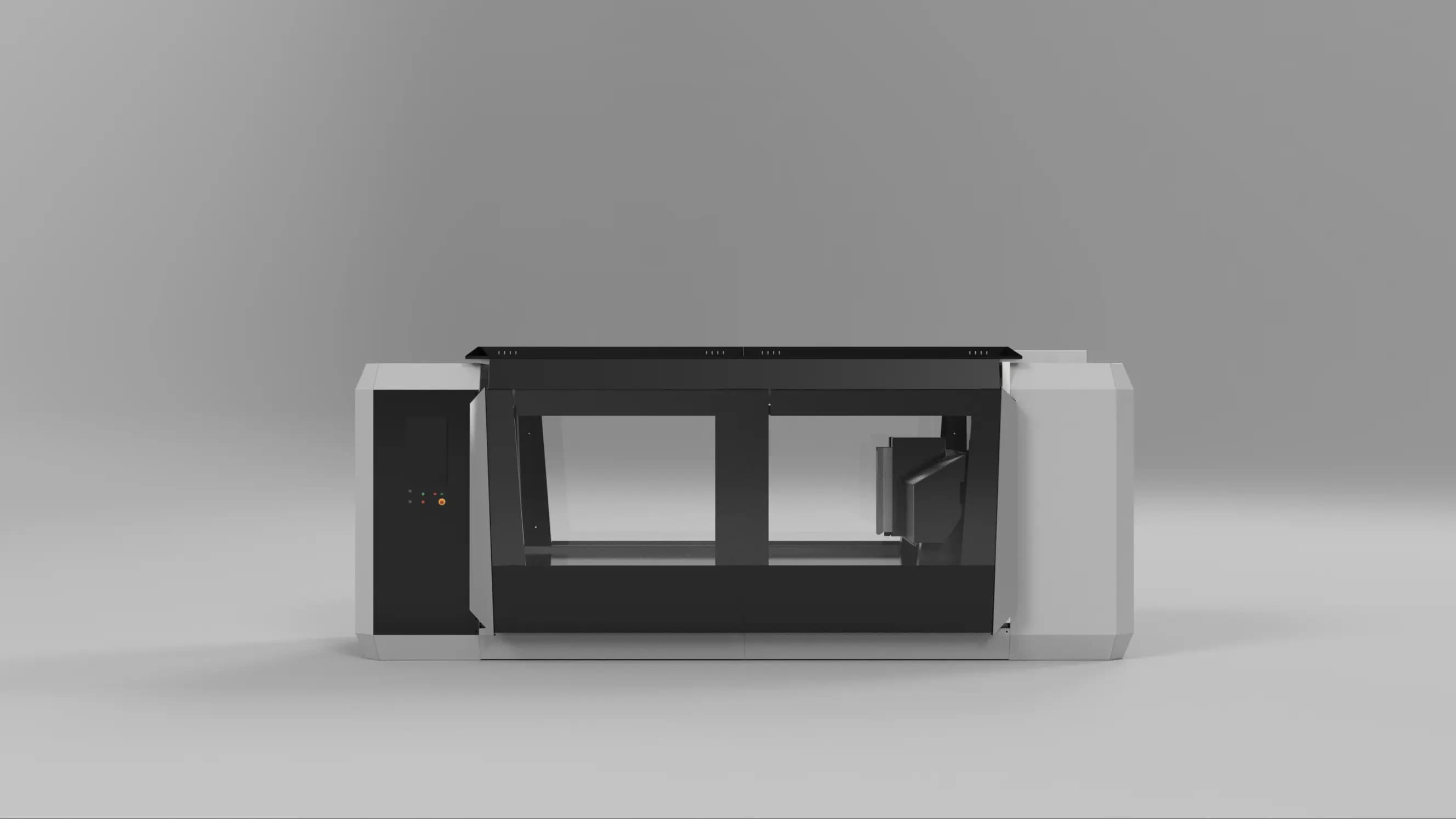

FX Series

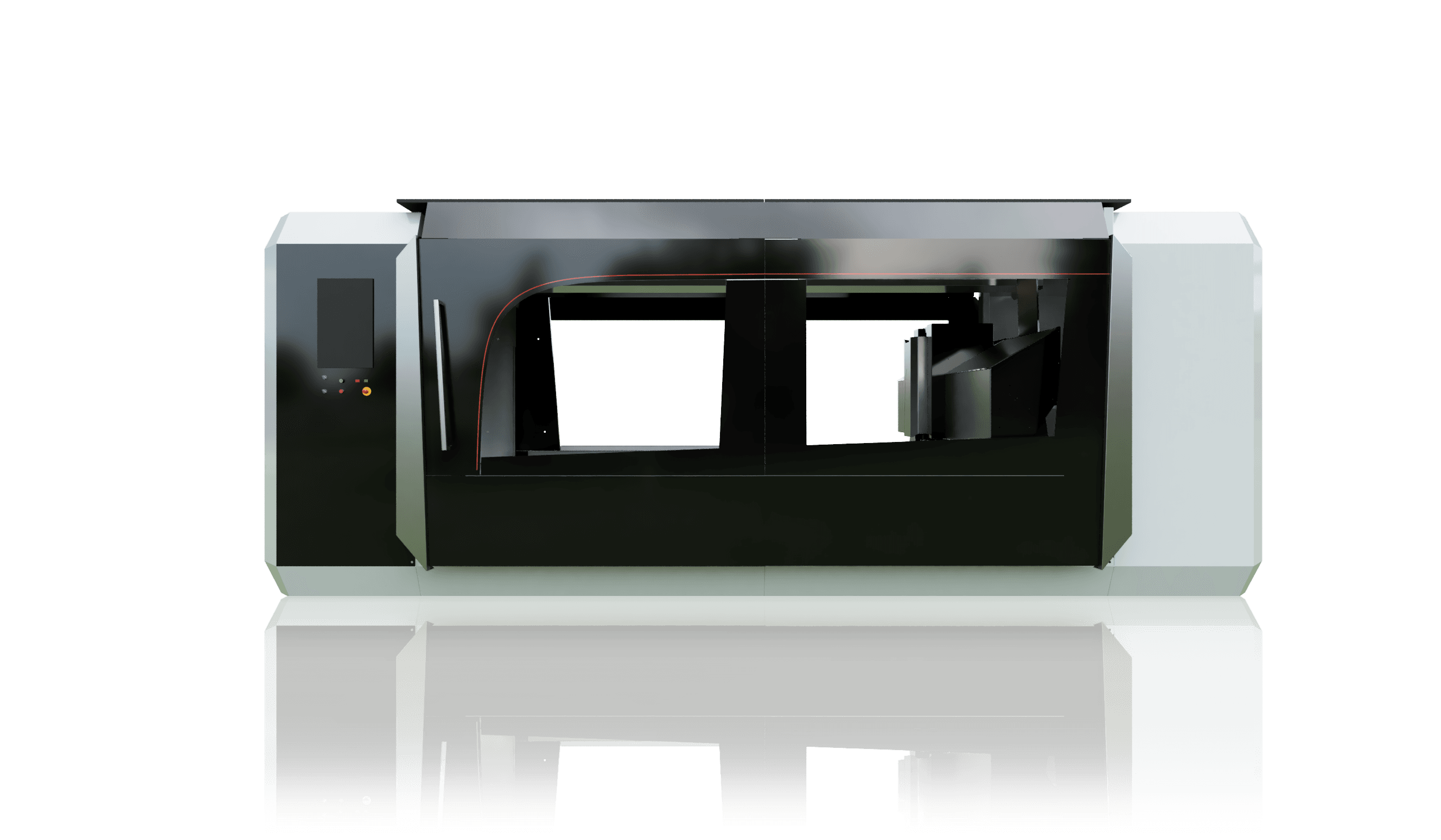

Portal Milling Machines

Highest performance and productivity

Highlights

High speed milling
Small foot-print
Versatility
User friendly interface

Control & Software

Digital twin simulation
Integrated FANUC controller and servomotors
Two software options – professional industrial FANUC software and easy to use customised software
Easy operation of the machine even for CNC operators with no experience
21″ industrial touchscreen

Technical Data

Travel 3.100 / 4.600 / 6.100 / 8.100 mm
Spindle up to 52.000 rpm
Positioning accuracy ± 1 µm
Max 48-station HSK-E32 magazine

Vacuum Technology

Vacuum Pumps from 600 cmh
Standard vacuum table

Controller

Swiss Dynamics is powered by an industrial Fanuc CNC controller.

High Precision: Fanuc CNC controllers are known for their exceptional precision and accuracy in controlling machine movements. This ensures that the final product meets the required specifications.

User-Friendly Interface: Fanuc CNC controllers have a user-friendly interface that allows operators to easily program and operate the machine. The interface is intuitive and provides clear instructions for setting up and running the machine.

Advanced Motion Control: Fanuc CNC controllers offer advanced motion control capabilities, allowing for precise and smooth movement of the machine. This ensures high-quality machining and reduces the risk of errors or defects.

APPLICATIONS

Precision
Machined Parts

High-speed milling for every industry — aluminum, brass and specialty alloys

Structural Frame

Material: Al 7075

Dimension: 1.200 mm × 600 mm × 80 mm

Machining time: 210 min

AEROSPACE INDUSTRY

Large Molds

Material: Tool steel 1.2311

Dimension: 900 mm × 700 mm × 250 mm

Machining time: 340 min

AUTOMOTIVE

Ring Gear

Material: 42CrMo4

Dimension: dia. 620 mm × 90 mm

Machining time: 165 min

ENERGY INDUSTRY

Housing

Material: Al 5083

Dimension: 700 mm × 500 mm × 300 mm

Machining time: 120 min

AUTOMATION

Help with AI

AI User Experience

A special experience

• Excellent interface with simple touch operation
• Easy part alignment using camera
• Display 3D Model of a program preview
• Manual Jog of the machine using touch monitor
• Automatic tool measurement
