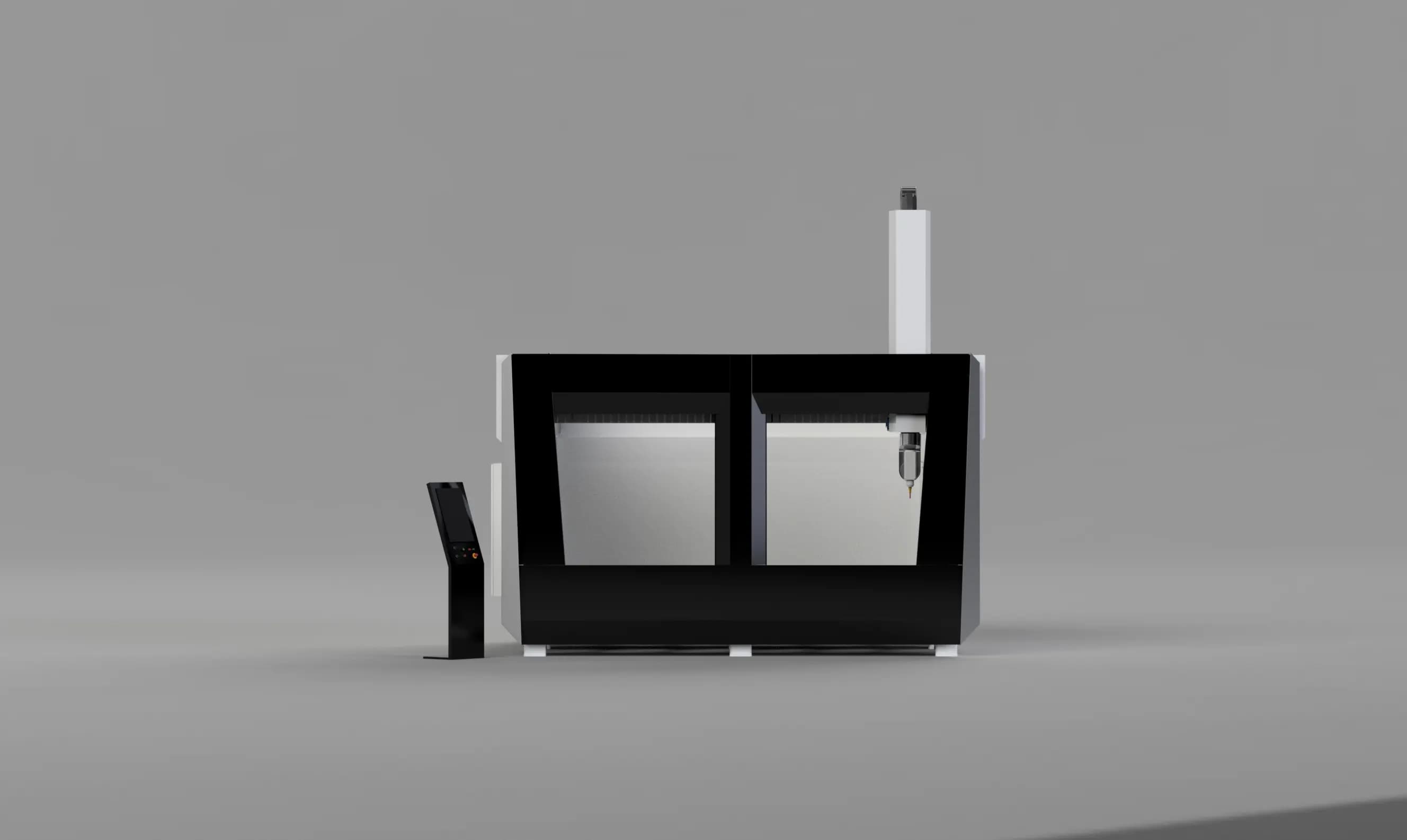

TX Series
Gantry Milling Machines

Highest performance and productivity

Highlights

Accuracy of positioning in all axes with 5 axes interpolated control
Thermal compensation ensures a stable, precise and high quality production process
Swiss Made transmission – precision with hardened surface

Control & Software

Digital twin simulation
Sinumerik One – 5 axes
Easy operation of the machine even for CNC operators with no experience

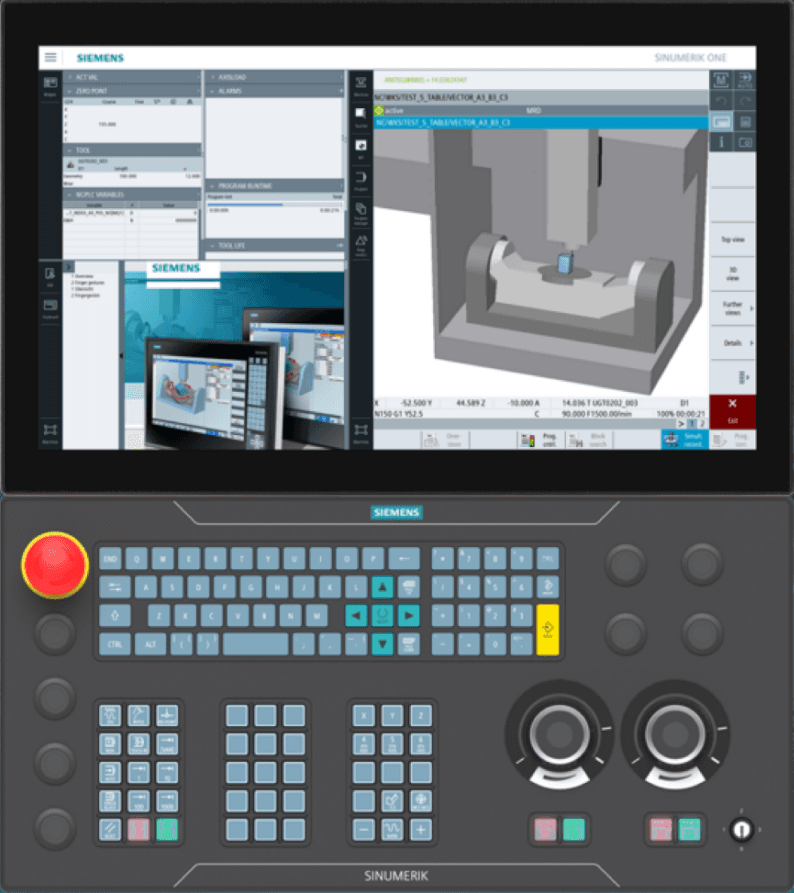

21″ industrial touchscreen

Technical Data

Travel 2.100 / 3.100 mm
Max. Z travels 1100 mm
Spindle up to 60.000 rpm
Positioning accuracy ± 1 µm
Max 200-station HSK-E32 magazine
Chips extraction container in base of the machine

Vacuum Technology

Vacuum is optional for TX Machines
Vacuum pumps is up to 300 cmh with rotary-vane technology

Controller

Swiss Dynamics is powered by an industrial Siemens CNC controller.

We recommend you to pay attention to the new SINUMERIK ONE, Siemens' latest CNC control system, offering advanced features and unparalleled performance. It supports digital twin technology for virtual commissioning and optimization, integrates open communication standards for connectivity, employs adaptive control algorithms for real-time tool path optimization to enhance productivity. And remains the class leader for 5-axis machining, multi-tasking, CNC robotics and complex applications.

With the user-friendly SINUMERIK Operate interface, advanced motion control, and comprehensive safety functions based on the integrated Safety PLC CPU (S7-1500F), SINUMERIK ONE empowers manufacturers to enhance productivity, quality, and flexibility in their machining processes.

APPLICATIONS

Precision
Machined Parts

High-speed milling for every industry — aluminum, brass and specialty alloys

Wing Rib

Material: Al 7050

Dimension: 2.400 mm × 800 mm × 120 mm

Machining time: 480 min

AEROSPACE INDUSTRY

Press Mold

Material: Tool steel 1.2379

Dimension: 1.800 mm × 1.200 mm × 400 mm

Machining time: 720 min

AUTOMOTIVE

Turbine Gear

Material: 34CrNiMo6

Dimension: dia. 1.100 mm × 160 mm

Machining time: 390 min

ENERGY INDUSTRY

Gearbox Housing

Material: GG25 cast iron

Dimension: 1.400 mm × 900 mm × 600 mm

Machining time: 260 min

HEAVY INDUSTRY

Help with AI

AI User Experience

A special experience

• Excellent interface with simple touch operation
• Easy part alignment using camera
• Display 3D Model of a program preview
• Manual Jog of the machine using touch monitor
• Automatic tool measurement

Service

All-round worry-free package for your new machine!

When it comes to servicing high-speed machining equipment, there are several key highlights to consider. Here are some of the highlights for servicing high-speed machining:

Regular Maintenance

High-speed machining equipment requires regular maintenance to ensure optimal performance and longevity. This includes routine inspections, cleaning, lubrication, and calibration of the machine components.

Specialised Training

Servicing high-speed machining equipment often requires specialised knowledge and training. Technicians should be well-versed in the specific requirements and intricacies of high-speed machining technology to effectively diagnose and address any issues that may arise.

Precision Calibration

High-speed machining equipment operates at extremely high speeds and tolerances. As such, precise calibration of the machine's components, such as spindles, tool holders, and linear guides, is crucial for maintaining accuracy and minimising vibration or tool deflection.

Monitoring and Diagnostics

Implementing monitoring and diagnostic systems can help identify potential issues before they lead to machine downtime or damage. This includes real-time monitoring of spindle speed, temperature, vibration, and other critical parameters to detect abnormalities and take proactive measures.

Collaboration with OEMs

High-speed machining equipment is often complex and may require collaboration with original equipment manufacturers (OEMs) for servicing and repairs. OEMs can provide technical support, access to spare parts, and specialised knowledge to ensure proper maintenance and operation of the equipment.
