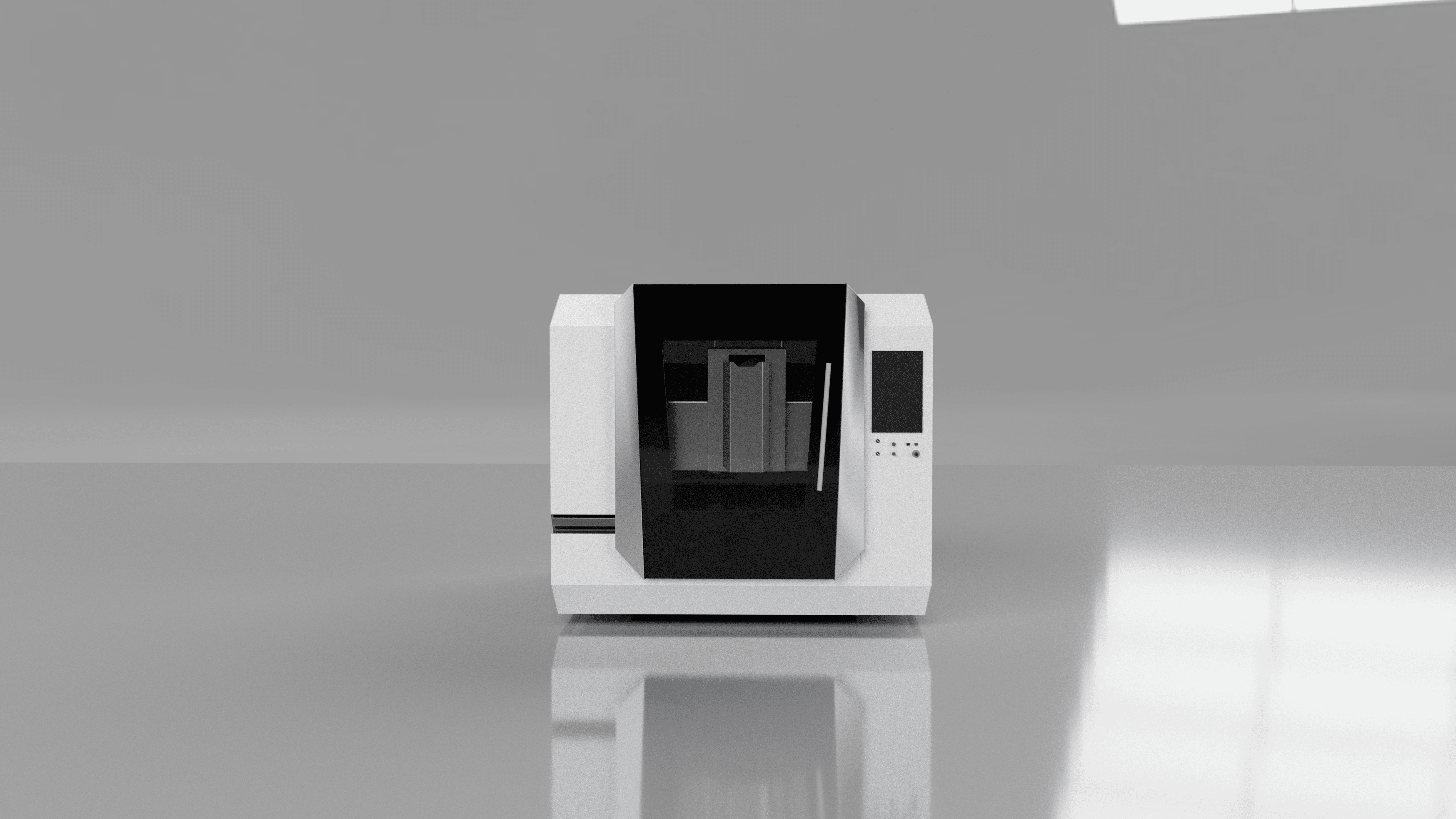

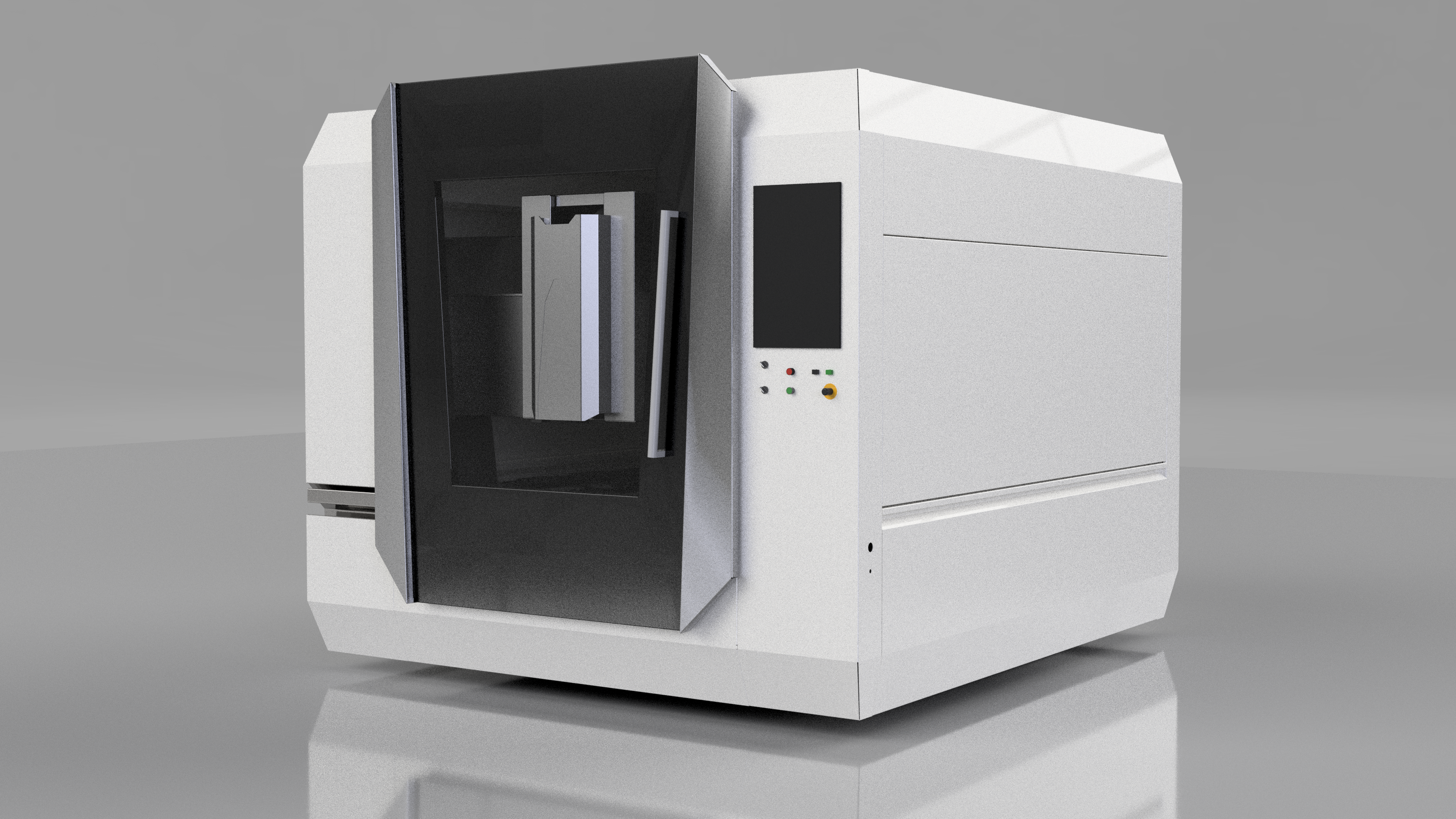

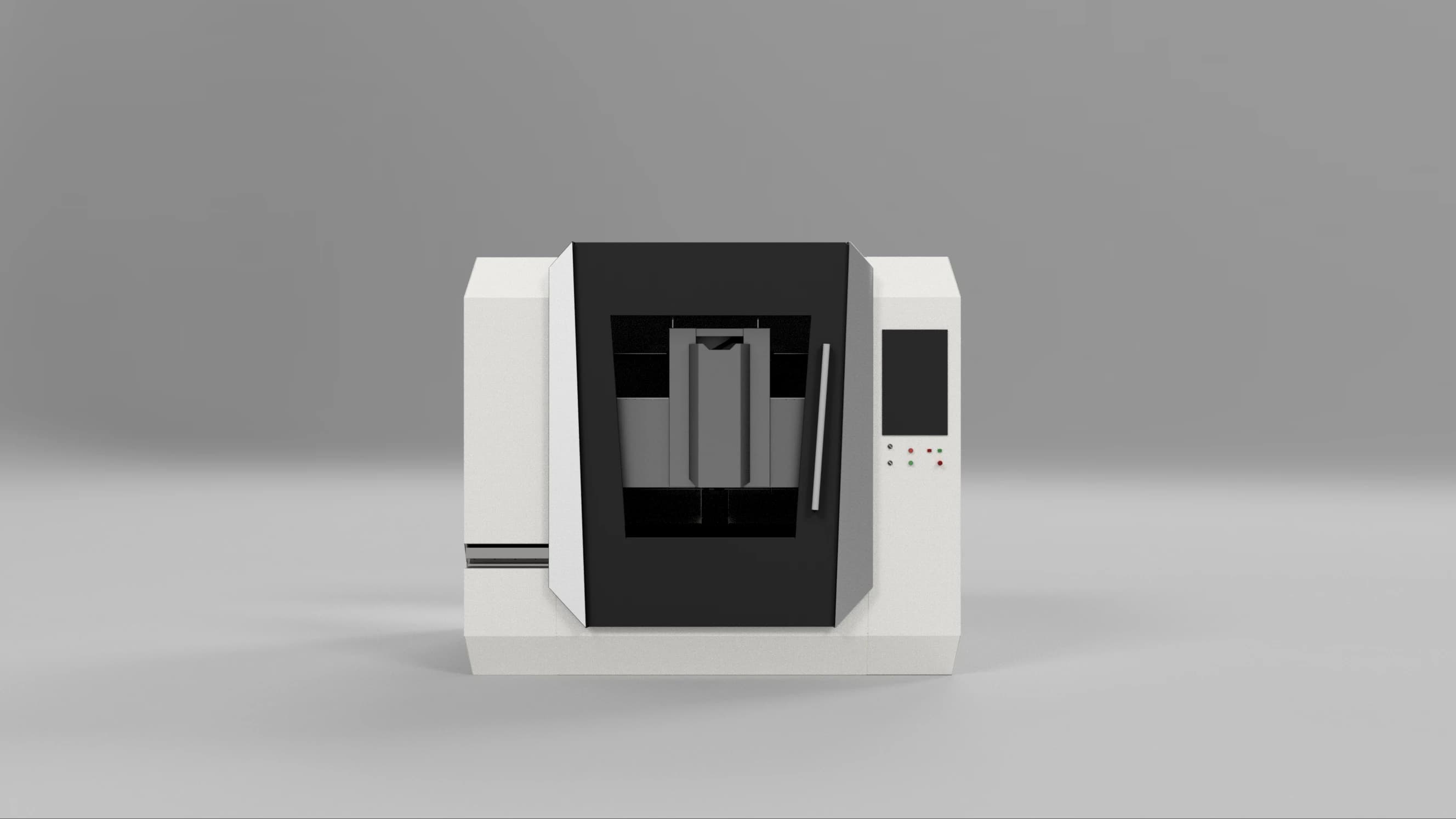

IKON Series
High Speed Milling Machines

Highest performance and productivity

Highlights

High speed milling
Small foot-print
Versatility
User friendly interface

Control & Software

Digital twin simulation
Integrated FANUC controller and servomotors
Two software options – professional industrial FANUC software and easy to use customised software
Easy operation of the machine even for CNC operators with no experience
21″ industrial touchscreen

Technical Data

Travel 1.800 / 1.500 / 1.000 / 500 mm
Spindle up to 52.000 rpm
Positioning accuracy ± 1 µm
Max 48-station HSK-E32 magazine

Vacuum Technology

Vacuum is an option for Ikon Machines
Vacuum table is divided in zones of 350 mm x 300 mm, each with electro-valves from controller
Vacuum pumps is up to 300 cmh with rotary-vane technology

Controller

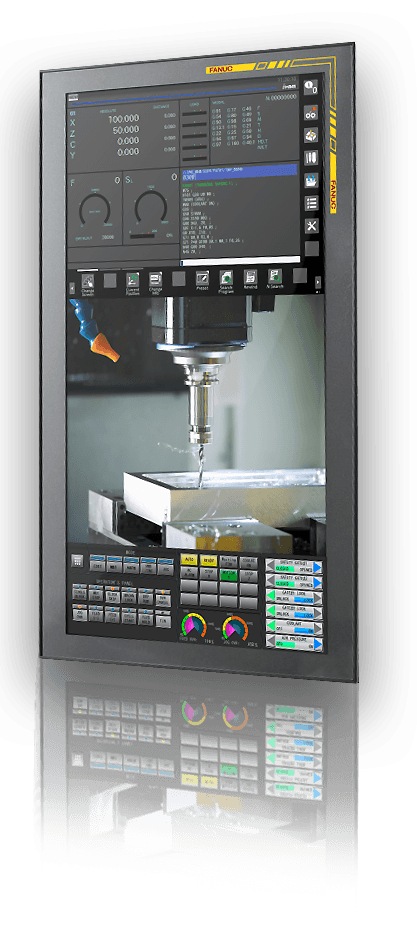

Swiss Dynamics is powered by an industrial Fanuc CNC controller.

High Precision: Fanuc CNC controllers are known for their exceptional precision and accuracy in controlling machine movements. This ensures that the final product meets the required specifications.

User-Friendly Interface: Fanuc CNC controllers have a user-friendly interface that allows operators to easily program and operate the machine. The interface is intuitive and provides clear instructions for setting up and running the machine.

Advanced Motion Control: Fanuc CNC controllers offer advanced motion control capabilities, allowing for precise and smooth movement of the machine. This ensures high-quality machining and reduces the risk of errors or defects.

APPLICATIONS

Precision
Machined Parts

High-speed milling for every industry — aluminum, brass and specialty alloys

Mechanical Part

Material: Al 5083

Dimension: dia. 320 mm × 20 mm

Machining time: 53 min

AUTOMATION

Molds

Material: Al 5083

Dimension: 200 mm × 150 mm × 12 mm

Machining time: 45 min

PLASTIC INDUSTRY

Mechanical Gear

Material: Brass

Dimension: dia. 76 mm × 9.6 mm

Machining time: 34 min

ENERGY INDUSTRY

Electronic Case

Material: Al 5083

Dimension: 180 mm × 120 mm × 50 mm

Machining time: 31 min

AEROSPACE INDUSTRY

Help with AI

AI User Experience

A special experience

• Excellent interface with simple touch operation
• Easy part alignment using camera
• Display 3D Model of a program preview
• Manual Jog of the machine using touch monitor
• Automatic tool measurement

Service

All-round worry-free package for your new machine!

When it comes to servicing high-speed machining equipment, there are several key highlights to consider. Here are some of the highlights for servicing high-speed machining:

Regular Maintenance

High-speed machining equipment requires regular maintenance to ensure optimal performance and longevity. This includes routine inspections, cleaning, lubrication, and calibration of the machine components.

Specialised Training

Servicing high-speed machining equipment often requires specialised knowledge and training. Technicians should be well-versed in the specific requirements and intricacies of high-speed machining technology to effectively diagnose and address any issues that may arise.

Precision Calibration

High-speed machining equipment operates at extremely high speeds and tolerances. As such, precise calibration of the machine's components, such as spindles, tool holders, and linear guides, is crucial for maintaining accuracy and minimising vibration or tool deflection.

Monitoring and Diagnostics

Implementing monitoring and diagnostic systems can help identify potential issues before they lead to machine downtime or damage. This includes real-time monitoring of spindle speed, temperature, vibration, and other critical parameters to detect abnormalities and take proactive measures.

Collaboration with OEMs

High-speed machining equipment is often complex and may require collaboration with original equipment manufacturers (OEMs) for servicing and repairs. OEMs can provide technical support, access to spare parts, and specialised knowledge to ensure proper maintenance and operation of the equipment.
